Porsche IMS Bearing – What It Is, Which Cars, and How to Fix It

What Is the IMS Bearing

IMS stands for Intermediate Shaft. The intermediate shaft is a small shaft inside the M96 and M97 water-cooled flat-six engines that drives the camshaft timing chains. One end of this shaft is supported by a sealed roller bearing pressed into the engine case at the rear of the engine.

When that bearing fails, several things happen in sequence:

1. The bearing breaks apart internally
2. Metal debris contaminates the engine oil
3. The shaft can wobble or shift position
4. The timing chains lose proper tension or alignment
5. Valves and pistons can collide

The result is typically catastrophic engine failure that requires either a full engine rebuild (typically $15,000-$25,000) or a replacement engine. There is no middle ground — once an IMS bearing has failed and contaminated the engine, the damage is widespread.

This is the primary reason the IMS bearing has become the most-discussed reliability concern in Porsche 911 ownership history. The failure mode is severe, and for years there was no preventive option. That has changed significantly, as the rest of this guide explains.

Why It Fails

The original IMS bearing in the M96 engine was a small sealed ball bearing designed for the relatively low loads of the intermediate shaft. Several theories explain why it fails:

Sealed bearing oil starvation: the original bearing is sealed against oil intrusion, which means it relies on factory-packed grease for lubrication. Over time, that grease degrades, and the bearing eventually runs dry. Once it runs dry, wear accelerates rapidly.

Heat cycling: the engine operates over a wide temperature range. The bearing material expands and contracts at slightly different rates than the surrounding aluminum case. Over years and thousands of heat cycles, this stress contributes to bearing failure.

‍Light loads with infrequent use: bearings benefit from regular use to keep grease distributed. Cars that sit for long periods, particularly garage-queens with very low annual mileage, appear to have higher failure rates than cars driven regularly. This is counterintuitive but well-documented in the data.

Insufficient bearing capacity: the original design used a relatively small bearing for the load conditions. Porsche revised the design twice during the M96/M97 production run, increasing bearing capacity in each revision.

None of these factors alone explains every failure, and Porsche has never officially identified a single root cause. The combination of factors — and statistical variance — is why some cars run 200,000+ miles without issue while others fail at 30,000 miles.

Which Cars Have IMS Bearings

The M96 and M97 engines were used in:

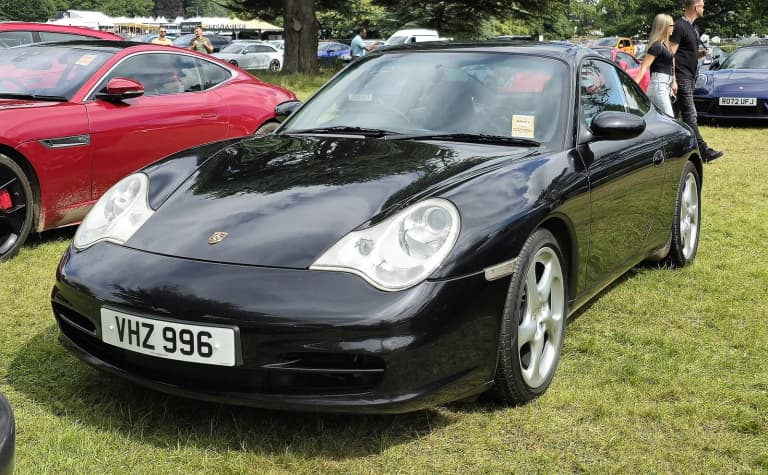

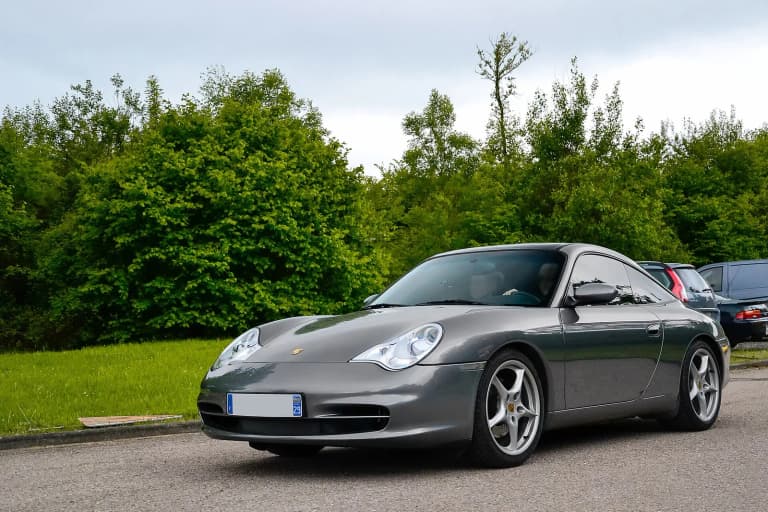

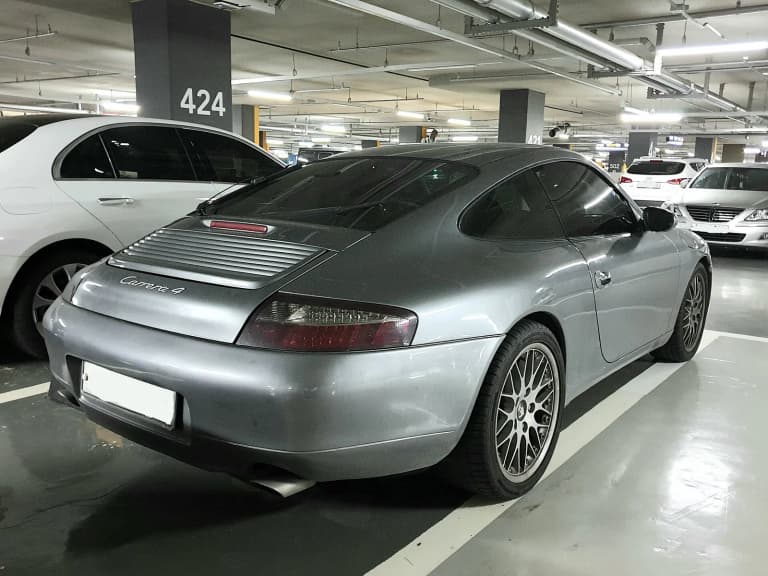

• 996 Carrera (all variants): 1999-2004 model years
• 996 Carrera 4S: 2002-2005
• 996 Turbo: 2001-2005 (different engine — Mezger M96/70 — NO IMS concern)
• 996 GT3 / GT2: different engine (Mezger) — NO IMS concern
• 997.1 Carrera / Carrera S: 2005-2008
• 997.1 Turbo: different engine (Mezger M97/70) — NO IMS concern
• 997.1 GT3 / GT2: Mezger engine — NO IMS concern

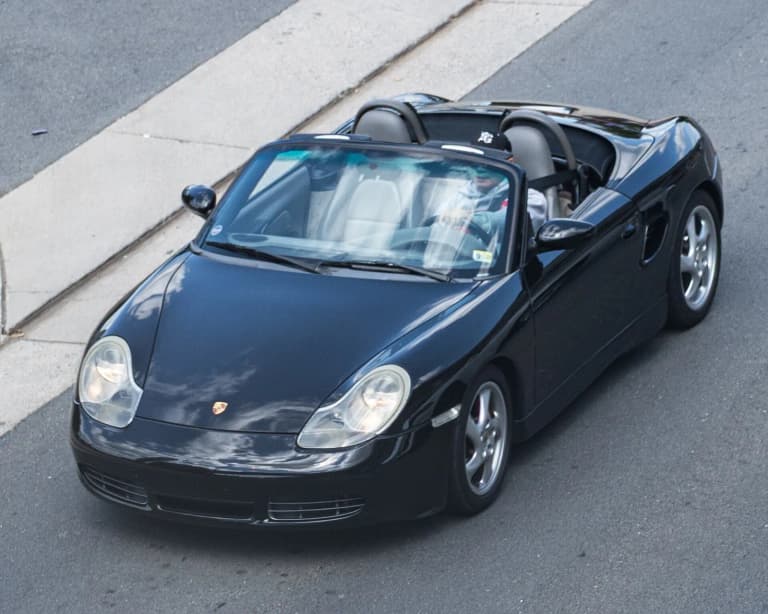

• Boxster (986 and 987): same M96/M97 architecture, same IMS risk

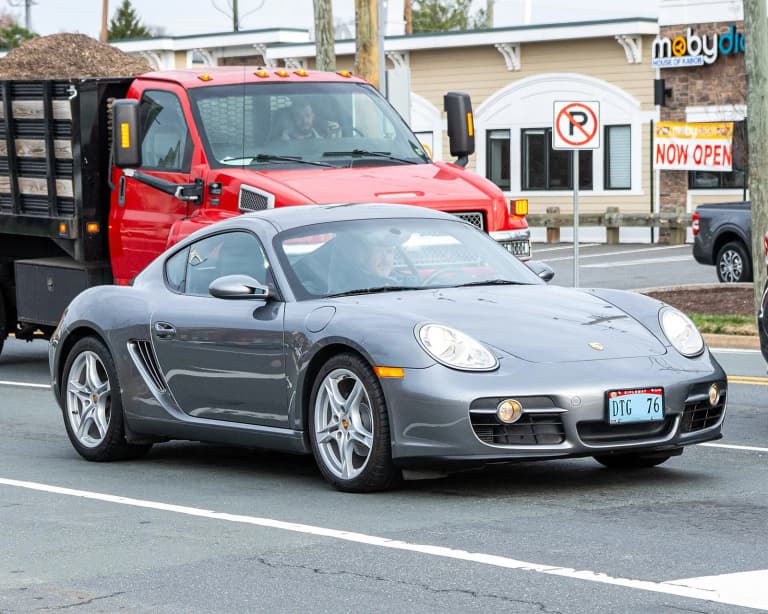

• Cayman (987): same M97 architecture, same IMS risk

The critical distinction: the standard Carrera models from 1999-2008 use the M96 or M97 engine with an IMS bearing. The Turbo, GT2, GT3, and GT3 RS from the same era use a completely different engine called the Mezger (technically derived from the air-cooled engine architecture). Mezger engines do not have IMS bearings and are widely regarded as bulletproof.

If you are looking at a 996 Turbo, 996 GT3, 997.1 Turbo, or 997.1 GT3 — the IMS is not your concern. If you are looking at any Carrera from 1999-2008, the IMS is the first thing to investigate.

Failure Rates by Year

Porsche revised the IMS bearing design twice during the M96/M97 production run. The bearing type — and the corresponding failure rate — varies by year and engine.

Years	Bearing Type	Documented Failure Rate	Retrofittable
1997-1999 (early 996 + Boxster)	Dual-row sealed ball bearing	~1-2%	Yes
2000-2005 (996 + Boxster + 987)	Single-row sealed ball bearing	~8-10%	Yes
2005-2008 (late 996 + 997.1 + 987)	Larger non-serviceable bearing	~1-3%	No (without splitting engine case)
2009+ (997.2 onwards)	DFI engine, no IMS	0% (eliminated)	N/A

Important context for these numbers: the 1-2% rate on dual-row bearings is based on warranty claims data and the class-action analysis by LN Engineering and others. The 8-10% rate on single-row bearings is the most-cited figure in the Porsche community and reflects the warranty period plus several years of independent shop data.

The 2005-2008 large non-serviceable bearing has a lower failure rate, but when it does fail, retrofit is essentially impossible without splitting the engine case — a $10,000+ job that nobody undertakes preventively. Owners of these cars typically monitor oil filters for debris and accept the residual risk.

Note that even the lowest failure rate is non-zero. Statistical risk varies widely by individual car, driving pattern, maintenance history, and luck. The retrofit is preventive insurance, not a guarantee.

Symptoms of Impending Failure

An IMS bearing typically fails suddenly without significant warning. There are some signs that may indicate problems are developing.

Metal debris in oil filter: the most reliable predictor. At every oil change, the filter should be cut open and inspected for ferrous material. Small amounts of magnetic flakes can indicate early IMS bearing wear and are a reason to schedule a retrofit immediately.

Oil consumption changes: a noticeable increase in oil consumption can indicate internal issues including IMS-related problems.

Unusual engine noises: any new ticking, whirring, or rattling from the engine warrants immediate investigation. Some owners report a faint whirring sound just before IMS failure.

Oil pressure changes: the IMS bearing failure does not directly affect oil pressure in early stages, but late-stage debris contamination can affect oil pump function and cause pressure variations.

The hard truth: many IMS failures occur with no warning at all. A car that ran fine on Saturday can fail catastrophically on Sunday. This is why preventive retrofit is the right move for affected cars rather than waiting for symptoms.

How to Inspect Before Buying

The IMS bearing itself can not be visually inspected without splitting the engine. But three indirect inspection methods are reliable predictors of health.

Oil filter cut-open inspection: the most important. Drain the oil and cut open the filter housing with an oil filter cutting tool. A magnetic plug or magnetic flashlight is used to check for ferrous debris embedded in the filter media. Any significant ferrous material is a strong signal that the IMS bearing is wearing.

Oil analysis: Blackstone Laboratories and similar services analyze used oil for trace metals. Elevated iron content can indicate bearing wear. This requires comparison against baseline data for the engine type, so a single sample is less useful than a series of samples over multiple oil changes.

Borescope inspection: while borescope inspection is primarily used for bore scoring on the 997.1 Carrera S, it can also reveal abnormal wear patterns that correlate with IMS issues.

Service history review: any documented IMS-related work (warranty replacements, retrofit installations, oil analysis history) is highly valuable. A car with documented IMS retrofit is significantly more valuable than an identical unretrofitted example.

For any used 996 or 997.1 Carrera purchase, the pre-purchase inspection should include all of the above. Budget $400-$600 for a comprehensive PPI at a Porsche-specialist independent shop. Cars without a recent oil change history (and therefore no opportunity to inspect the filter) deserve extra skepticism.

Retrofit Options

LN Engineering pioneered IMS retrofit kits in the mid-2000s. Several options exist today, varying in price, complexity, and durability.

IMS Retrofit (Single Row) Classic: replaces the failed single-row bearing with a serviceable ceramic ball bearing. Considered standard preventive maintenance for affected cars. Installation requires removing the transmission and clutch. Total cost including labor: typically $2,000-$3,500.

IMS Retrofit Pro: upgraded version with stronger ceramic ball bearing and improved sealing. Slightly more expensive ($2,500-$4,000 installed) but with longer expected service life.

IMS Solution: a plain bearing (not ball bearing) that uses pressurized engine oil for lubrication instead of grease. This is widely regarded as the strongest available retrofit and is preferred for high-mileage drivers and track-day enthusiasts. Cost: $3,500-$5,000 installed.

Dual-row retrofit: for 1997-1999 dual-row bearings, retrofit kits exist but are not commonly installed because the original bearing rarely fails. Some owners install them as part of major engine work but rarely as standalone preventive maintenance.

The retrofit operation is significant work. Transmission removal, clutch service (typically performed at the same time), and engine reassembly all add labor cost. A specialist shop with M96/M97 experience is essential.

What It Costs

Service	Typical Range (USD)
IMS Retrofit Classic (parts + labor)	$2,000 - $3,500
IMS Retrofit Pro (parts + labor)	$2,500 - $4,000
IMS Solution (parts + labor)	$3,500 - $5,000
Clutch replacement bundled with retrofit (typical)	+$1,500 - $2,500
RMS (rear main seal) replacement bundled (typical)	+$500 (labor already incurred)
Engine replacement after IMS failure	$15,000 - $25,000+
Pre-purchase inspection (Porsche specialist)	$400 - $600

Most owners bundle the IMS retrofit with clutch replacement (since the transmission is already removed) and RMS (rear main seal) replacement (since the engine is already accessible). The combined service typically runs $4,000-$6,500 and addresses multiple known wear items in a single visit.

When to Retrofit

The right time to retrofit depends on the car and the owner’s circumstances.

Retrofit immediately if:

• You have just purchased a 2000-2005 996 Carrera with no documented retrofit history
• Oil analysis or filter inspection shows ferrous debris
• You are doing a clutch replacement anyway (labor is already incurred)
• The car has over 80,000 miles and no retrofit history
• You plan to track the car or drive it aggressively

Retrofit on next clutch service if:

• The car is a 1997-1999 dual-row bearing (low risk but preventive)
• Current clutch has significant remaining life
• Filter inspections show clean oil
• You drive the car infrequently

Probably do not retrofit if:

• The car is a 2005-2008 large non-serviceable bearing (retrofit requires splitting engine case — $10,000+ job, often more expensive than the car is worth)
• The car already has a documented IMS retrofit from a previous owner
• The car is a 997.2 or newer (no IMS in DFI engines)
• The car is a 996/997 Turbo, GT3, or GT2 (Mezger engine, no IMS)

Buying a Car with IMS Risk

The IMS bearing situation has shaped the used market for 996 and 997.1 Carreras for over a decade. Several practical implications.

Cars with documented retrofits command a premium. A 2003 996 Carrera with a documented IMS retrofit from a Porsche specialist typically sells for $3,000-$5,000 more than an equivalent unretrofitted example. This is essentially the buyer paying for the work that is no longer needed plus peace of mind.

Cars without retrofits should be priced to account for the work. Subtract the retrofit cost ($3,000-$3,500 for a Classic kit installed) from the asking price. If the seller will not negotiate to that level, walk away — there are other 996s in the market.

Service history matters more than mileage. A 120,000-mile 996 with extensive Porsche-specialist service history, documented oil analysis, and a recent retrofit is a better buy than a 50,000-mile example with patchy records and an unknown IMS state.

Single-row bearing cars (2000-2005) are the worst risk and the best retrofit candidates. If you find a clean 2003 996 with a documented retrofit, that is one of the best 911 value propositions on the used market today.

See our Porsche 911 buyer’s guide for the broader purchase process and our common problems guide for the other issues to watch on these generations.

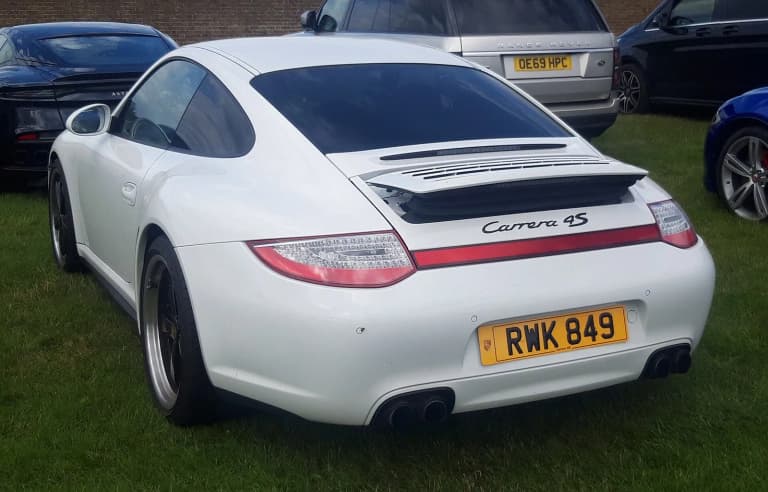

The 997.2 DFI Fix

Porsche eliminated the IMS bearing entirely with the 997.2 generation in 2009. The new 9A1 engine architecture introduced for the 997.2 — and continued through the 991 and 992 generations — uses a different timing chain drive system that does not require an intermediate shaft.

The change was driven by the move to direct fuel injection (DFI). The new engine architecture supports DFI and dropped the intermediate shaft as part of the broader redesign. This is why the 997.2 (2009-2012) is widely considered the inflection point for modern 911 reliability — it eliminated the M96/M97 failure modes and introduced the modern engine that has served reliably across 17 years and three generations.

For buyers who want to skip the IMS conversation entirely, the 997.2 Carrera S is the most affordable entry point with the modern engine. Used prices typically start around $55,000-$80,000. For more on this generation, see our 997 generation guide.

Renn Driver’s Take

The IMS bearing reputation is largely deserved but also exaggerated by internet folklore. The reality is that most 996 and 997.1 Carreras run for decades without IMS failure, even without retrofit. The cars that do fail are loud and dramatic enough to dominate online conversations about Porsche reliability.

The right framing is this: the IMS is a known risk with a known solution. The retrofit is well-documented, well-priced, and addresses the risk effectively. A 996 Carrera with a documented IMS retrofit is essentially equivalent to a 997.2 Carrera in IMS terms — both have eliminated the failure mode.

The value play in the used 911 market is to buy a 2000-2005 996 Carrera with a documented retrofit, complete service history, and a clean PPI. These cars trade at roughly $35,000-$45,000 today and deliver an extraordinary driving experience for the money. The original concern is mitigated. The remaining quirks of the platform (RMS leaks, AOS failures, plastic coolant pipes) are all addressable as part of normal ownership.

If you are buying a 996 or 997.1 Carrera, do not skip the PPI. Do not let a seller talk you out of inspecting the oil filter. And do not pay full retail for a car without a documented retrofit — the retrofit cost is leverage in negotiation.

Frequently Asked Questions

What is the IMS bearing in a Porsche?

The IMS bearing is a sealed roller bearing in the M96 and M97 water-cooled flat-six engines used in Porsche 911 Carrera, Boxster, and Cayman models from 1999 to 2008. It supports the intermediate shaft that drives the timing chains. When it fails, debris contaminates the oil and the engine typically suffers catastrophic damage.

How much does it cost to replace a Porsche IMS bearing?

The IMS retrofit costs $2,000-$3,500 for the Classic kit installed, $2,500-$4,000 for the Pro version, and $3,500-$5,000 for the IMS Solution. Most owners bundle the retrofit with clutch replacement (since the transmission is already removed) for a combined $4,000-$6,500 service. Engine replacement after IMS failure typically runs $15,000-$25,000+.

Which Porsche 911 has the IMS bearing problem?

The IMS bearing affects 1999-2008 Porsche 911 Carrera and Carrera S models with the M96 or M97 engine. The 996 Turbo, 996 GT3, 996 GT2, 997.1 Turbo, 997.1 GT3, and 997.1 GT2 use a completely different engine called the Mezger and do not have an IMS bearing. The 2009 and newer 997.2 and later 911s use the new 9A1 DFI engine without an IMS.

How likely is an IMS bearing to fail?

The failure rate varies significantly by year and bearing type. The 1997-1999 dual-row bearing has approximately a 1-2% failure rate. The 2000-2005 single-row bearing has approximately an 8-10% failure rate. The 2005-2008 larger non-serviceable bearing has approximately a 1-3% failure rate but is not retrofittable without splitting the engine case. The 2009 and newer DFI engines have eliminated the IMS entirely.

Should I buy a 996 without an IMS retrofit?

Yes, with caveats. A 996 without an IMS retrofit should be priced to account for the work — typically $3,000-$3,500 below an equivalent retrofitted example. Plan to do the retrofit yourself within the first year of ownership, ideally bundled with a clutch service if the clutch has under 50,000 miles of remaining life. Get a thorough pre-purchase inspection including oil filter cut-open inspection before purchase.

Can you tell if an IMS bearing is going to fail?

Not reliably. Some IMS failures occur with no warning at all. The most predictive sign is ferrous metal debris in the oil filter, which can indicate early bearing wear. Oil analysis showing elevated iron content over multiple changes is another indicator. Unusual engine noises (ticking, whirring) warrant immediate investigation. Most owners and shops recommend preventive retrofit rather than waiting for symptoms.

What is the IMS Solution?

The IMS Solution from LN Engineering is a plain bearing (not a ball bearing) that uses pressurized engine oil for lubrication instead of factory-packed grease. It is widely considered the strongest available IMS retrofit option and is preferred for high-mileage drivers and track-day enthusiasts. Cost runs $3,500-$5,000 installed compared to $2,000-$3,500 for the Classic ball bearing retrofit.

Are 996 IMS bearings still failing today?

Yes, IMS failures continue to occur on unretrofitted cars, though the rate of failures has slowed as the affected population ages and many cars have been retrofitted. New IMS failures on previously-untouched 2000-2005 single-row bearing cars are still reported to specialists every month. The risk does not decrease with age — older bearings have more accumulated stress and degraded grease.

Failure rate figures sourced from LN Engineering’s published class-action analysis, Porsche dealer warranty data, and independent specialist shop records. Repair cost figures are 2026 US market estimates and will vary by region, shop, and the specific work performed.
